Current Status

The GigaBit Cable Receiver (GBCR) ASIC is designed as an equalizer chip to compensate the ITk pixel data transmission loss in the high frequency range.

There are ~4500 GBCR chips in the ITk Pixel system.

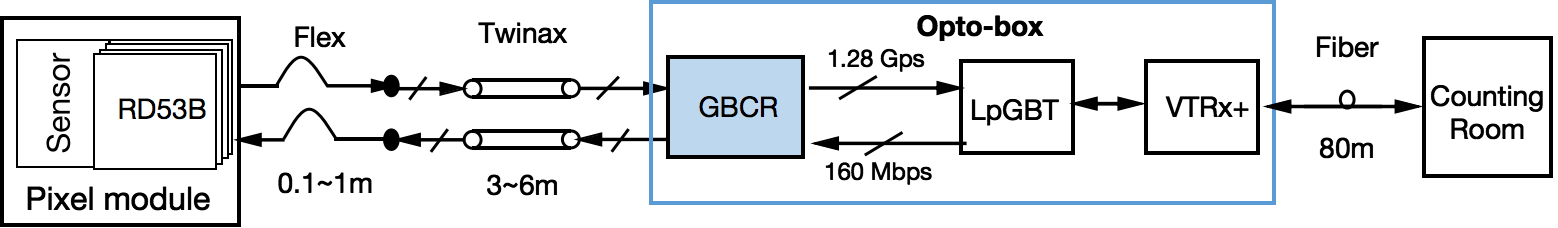

ATLAS ITK readout system
ATLAS ITK readout system

The TWiki page for GBCR: GBCR

My Github Link: GBCR3_SLAC

The GBCR Testing Github: GBCR-Testing

Recent Tasks

Click to view the breakdown

  1. Modify the summary part of main.py code

  2. Scan in the retimed mode first and stay in the bad phase point, then go back to the voted mode and check if there are correlated (for all the channels)

  3. Do several new power-cycling and check the good window region in retimed mode
